Hi,
I'm a new cqrlog user. Version: 2.5.2 on Linux Mint 20.1
Reading data from wsjtx does not work.
- wsjtx and cqrlog running on two PC's LAN connectet
- UDP server ports are set in wsjtx and IP address in cqrlog and ports are correct (wsjtx interface)
- starting remote mode for wsjt always reports: Offline with red color
what is going wrong?
Any help are welcome.
73 Hans
HI Hans!
- Offline with red color is ok. It indicates that New QSO is offline and you can not add qso manually. It comes via remote.
- with very latest wsjtx you have to select physical port (ethernet device) it otherwise defaults to localhost and then you must have same PC for both programs.

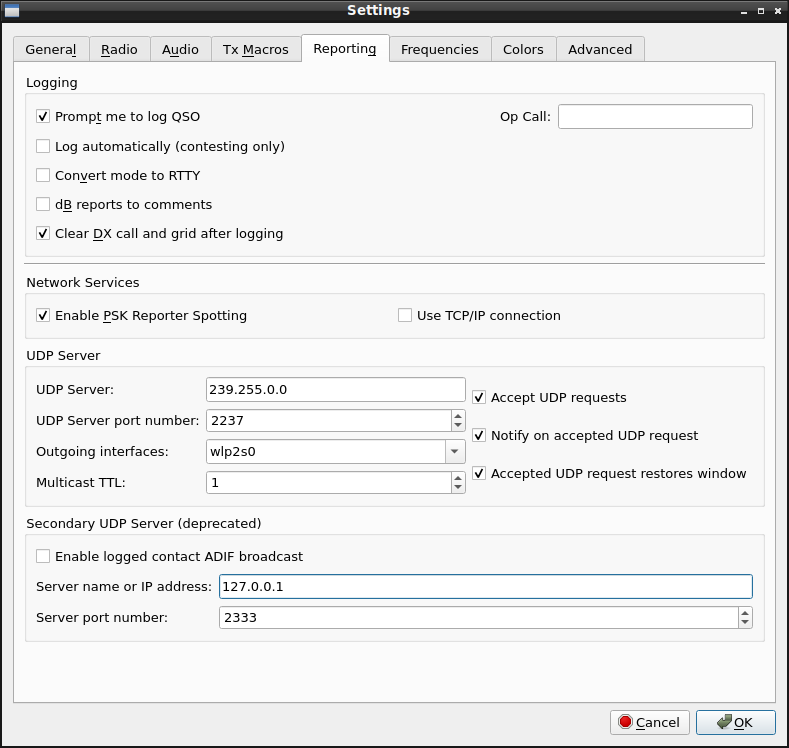

- You can also try multicast UDP with latest cqrlog. See my setup picture. Just set the same IP in preferences/fldigi wsjt interface settings at cqrlog side.
- If you do not need multicast you can try to set cqrlog's wsjtx IP to 0.0.0.0 and specify cqrlog pC's IP at wsjtx settings. It will then listen to all addresses.
It is a long time since I last tested with two PCs, but anything has changed since then so it should work ok.
File:
--
Saku
OH1KH
Hi Saku,
-red color for ok is strange and could be misinterpreted.
Question: is it now possible to import the logfile from the wsjtx PC? and if so how?
73 Hans
Hi Hans!
Red color (warning) and offline with remote mode: You can not feed new callsign to new qso. Qso time and date comes from remote system.
Red color (warning) and offline with manual mode: You can feed callsign, but date an time are not taken from PC clock. You have to feed them (for past qso input)
You find wsjtx adif log from ~/.local/share/WSJT-X/wsjtx_log.adi It can be imported to cqrlog via NewQSO/Window/QSOlist/File/Import/ADIF
Use also NewQSO/Help/Help index (Alt+H) and check videos at https://www.youtube.com/channel/UC3yPCVYmfeBzDSwTosOe2fQ
--
Saku
OH1KH
