DL3LAR
xplanet projection and directional map

Hi there,

in my installation, xplanet couldn't find the directional map (bck.png) which I figured out, while I was looking for a different background, than the dark stars.

However, so far, I didn't found a way for xplanet to change the background through the config file, but simply by setting up a symbolic link, the directional map background is working:

cqrlog starts xplanet with this commandline:

Command line: /usr/bin/xplanet -config /home/rolf/.config/cqrlog/xplanet/geoconfig -glare 28 -light_time -range 2.5 -wait 5 -geometry 400x400+10+10 -window_title "CQRLOG - xplanet" -longitude 10.5417 -latitude 52.2292 -projection azimuthal -background /home/rolf/.config/cqrlog/xplanet/bck.png

but trying it from the console generates an error:

Warning: Can't find /home/rolf/.config/cqrlog/xplanet/bck.png in
xplanet/images
/home/rolf/.xplanet/images
/usr/share/xplanet/images

bck.png is located at /usr/share/cqrlog/images/ so you just need to add a symbolic link

~$ cd .config/cqrlog/xplanet
~/.config/cqrlog/xplanet$ ln -s /usr/share/cqrlog/images/bck.png bck.png

@Petr: maybe you could fix the link from the source code, that cqrlog is using the correct destination of bck.png. Thank's

73 de Rolf, DL3LAR

DL3LAR
use Xplanet with different Earth Image

Hi,

I spend some more time with Xplanet and cqrlog. I was not so satisfied with the Nasa's Visible Earth Image, which came originally with xplanet. Within a cqrlog view, it has a lot of dark parts in the azimuthal view.

So I found one, that fit more my needs on the Xglobe & Xplanet website: http://www.radcyberzine.com/xglobe/
It's a Super-Hires 2400x1200 px Map. Biosphere Map.

How to use it with cqrlog ? Just save it in your favorite location (e.g. ~/.config/cqrlog/xplanet) and edit the xplanet config file from cqrlog.
So this change should stay within cqrlog, if you use xplanet elsewise.

Please edit ~/.config/cqrlog/xplanet/geoconfig with a text editor:


[default]
max_radius_for_label=0
#marker_font=verdanab.ttf
marker_fontsize=14
#magnify=3000


[earth]
color={28, 82, 110}
#bump_scale=1
#cloud_map=
map=/home/rolf/.config/cqrlog/xplanet/bio_2400.jpg
magnify=0.9
grid=true
#satellite_file=iss
#arc_file=constellations
marker_file=/home/rolf/.config/cqrlog/xplanet/marker
twilight=12
shade=100

I basically made three changes:

  • add line color={28, 82, 110}
  • uncomment line map= and add link, where you saved your favorite worldmap
  • uncomment line grid=true

References:
http://xplanet.sourceforge.net/README.config
http://xplanet.sourceforge.net/README

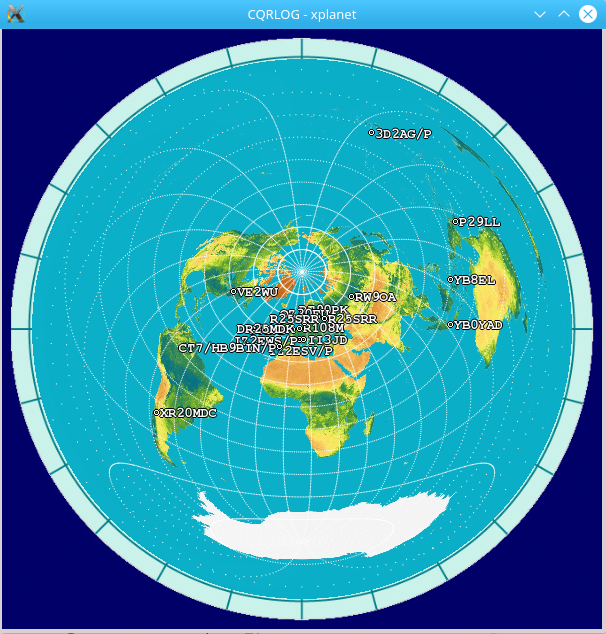

I attached a screenshot how it looked in my setup.

73 de Rolf, DL3LAR
